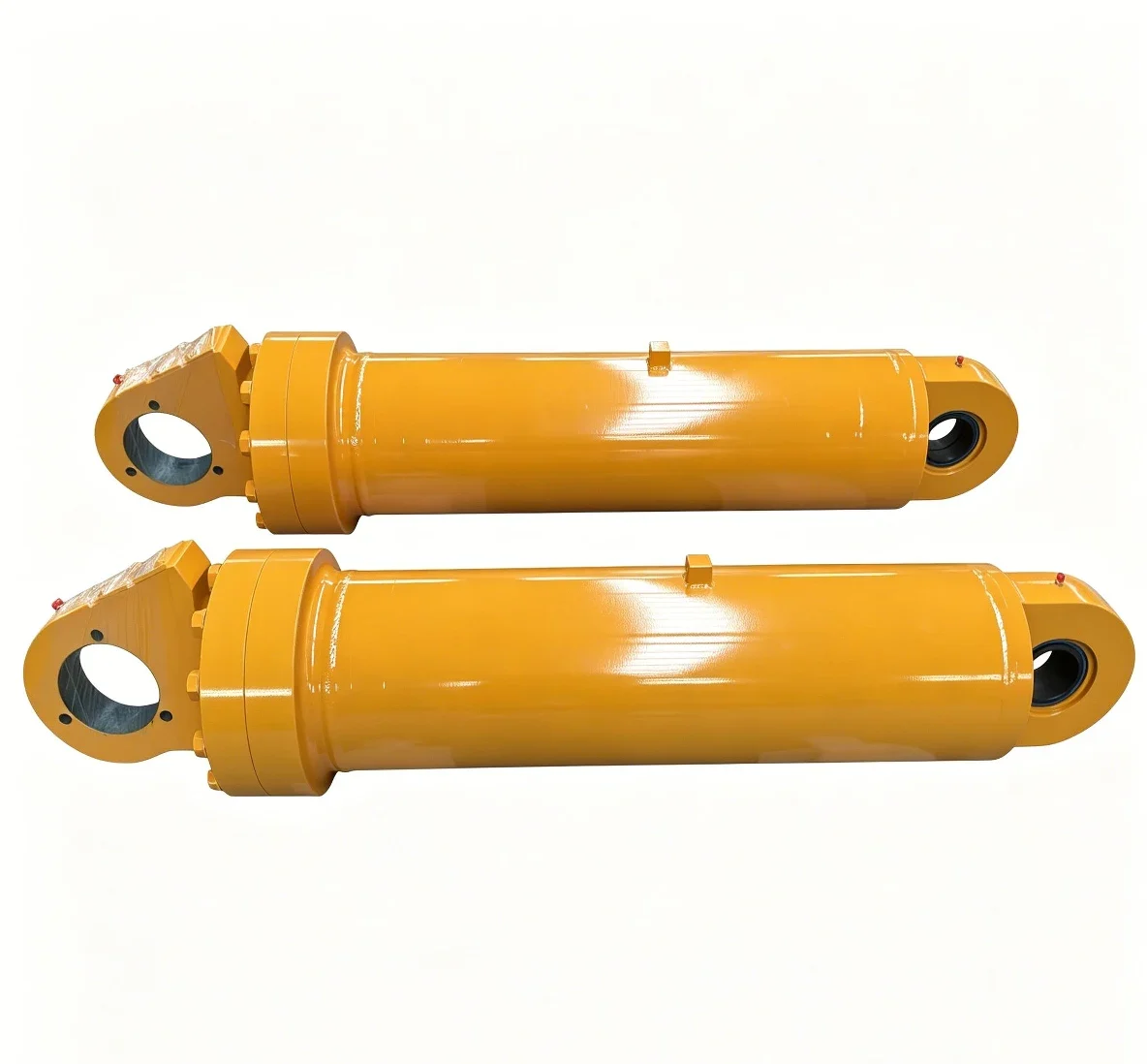

541-8382 CAT R1700 Underground LHD Loader Hoist Cylinder Aftermarket Replacement

Product Overview

SEIGO’s aftermarket hoist cylinder, part number 541-8382, is a direct drop-in replacement for the Caterpillar R1700 underground mining Load Haul Dump (LHD) loader — Caterpillar’s current-generation 15-tonne class underground loader powered by the Cat C13 six-cylinder engine. This cylinder is the primary hydraulic actuator governing the lift and lower motion of the front boom arm and bucket assembly within the R1700’s purpose-redesigned front linkage system.

On the R1700, Caterpillar specifically repositioned and resized the front linkage cylinders compared to the predecessor R1700G — engineering them for greater mechanical lift advantage and rated for the higher hydraulic flow rates of the C13-powered system. The hoist cylinder works in a demanding underground environment that is fundamentally different from surface mining: narrow drives, tight turning radii, steep ramp grades, continuous tramming cycles, and the low-clearance, low-ventilation conditions of hard-rock underground mines mean that the cylinder is exposed to abrasive rock dust, water ingress from mine dewatering, and the mechanical shock loads of aggressive bucket penetration into the ore pile at the drawpoint. At a rated payload of 15,000 kg per cycle and typical cycle times measured in minutes, the hoist cylinder completes thousands of full lift-lower sequences per shift across the machine’s operating life.

SEIGO manufactures the 541-8382 with a 42CrMo4 induction-hardened, hard-chrome-plated piston rod rated to HRC 58–62, providing resistance to the surface scoring and chrome pitting that is accelerated by the rock dust and water that permeates the underground environment. The cylinder barrel is produced from ST52 seamless honed steel, and sealing is provided by a genuine NOK (Japan) or Parker (USA) seal kit rated for the R1700’s high-pressure hydraulic implement circuit. Every unit is pressure-tested at 1.5× rated working pressure before shipment from SEIGO’s Guangdong, China factory and is backed by a 12-month or 2,000 operating-hour warranty, whichever comes first. Standard lead time is 2–3 weeks, with a 5–7 day Rapid Production Track for underground site emergencies.

Technical Specifications Table

Machine Fitment

• Caterpillar R1700 Underground Mining LHD Loader — current generation, Cat C13 engine, 15,000 kg (33,069 lb) rated payload
• Engine options: Cat C13 (Stage V / Tier 4 Final / Tier 2 equivalent — region dependent)
• Also confirm applicability to R1700 XE (battery-electric variant) with SEIGO engineering team before ordering, as the XE platform uses a different hydraulic architecture

We recommend customers provide their full machine serial number to SEIGO’s engineering team before ordering to confirm the correct cylinder specification, particularly for machines equipped with optional Command for Underground autonomous haulage systems or regional emission specification variants.

Key Features & Quality Points

• Engineered for the R1700’s redesigned front linkage system — larger-bore, repositioned cylinder geometry matched to OEM mounting dimensions
• Rated for the R1700’s high-flow hydraulic implement circuit driven by the Cat C13 engine
• 42CrMo4 induction-hardened rod to HRC 58–62 — resists chrome pitting and scoring from rock dust and mine water contact in underground environments
• ST52 seamless honed steel barrel for consistent bore finish and long seal service life in contaminated underground conditions
• NOK (Japan) / Parker (USA) premium seal kit — zero-leakage performance under continuous high-cycle LHD loading and tramming operations
• 100% pressure tested at 1.5× rated working pressure before shipment
• ISO 9001:2015 certified manufacturing process
• Drop-in fitment — no machine modification required
• 12-month / 2,000-hour warranty, whichever comes first
• Export-grade fumigated wooden crate packaging; compact crating available for underground shaft or decline delivery logistics
• FOB Shenzhen / CIF / DDP shipping terms available

FAQ

Q1: Is SEIGO 541-8382 dimensionally identical to the Caterpillar OEM part? A: Yes. Our 541-8382 is manufactured to match all OEM mounting dimensions, pin-eye bore diameters, rod diameter, stroke length, port locations, and thread specifications of the Caterpillar original. It is a true drop-in replacement requiring no modification to the machine or linkage structure.

Q2: What is the function of the hoist cylinder on the CAT R1700, and how does it differ from a surface loader? A: The hoist cylinder on the R1700 controls the full lift and lower motion of the front boom and bucket — the primary load-bearing function on every tramming and dumping cycle. What distinguishes the R1700’s hoist cylinder from surface loader equivalents is the operating environment: underground LHD loaders work in low-clearance drives with continuous exposure to rock dust, mine water, and the mechanical shock of aggressive pile penetration. The R1700 specifically redesigned its front linkage cylinders for greater mechanical lift advantage and durability — our 541-8382 matches this redesigned geometry exactly.

Q3: What is the lead time for 541-8382? A: Standard production lead time is 2–3 weeks ex-works Guangdong, China. For underground site emergency orders, our Rapid Production Track delivers in 5–7 working days subject to materials availability. We understand that underground mine logistics — shaft hoisting schedules, portal access windows, and decline haulage — add complexity to parts delivery; our team will work with your site logistics coordinator to plan packaging and delivery accordingly.

Q4: What are the most common failure signs on the R1700 hoist cylinder? A: The primary indicators of hoist cylinder failure include visible hydraulic oil weeping or leakage at the rod seal, loss of full lift height under load (boom cannot reach full elevation with rated payload), slow or inconsistent lift speed, boom drift when held at height with engine running, and visible chrome scoring or pitting on the rod surface. In underground environments, chrome pitting from water contact and seal contamination from fine rock dust are the most common accelerators of seal failure. Any of these symptoms warrant immediate inspection — a failed hoist cylinder in an underground drive creates a production stop that is difficult and time-consuming to recover from.

Q5: Does 541-8382 also fit the R1700G or earlier R1700 variants? A: Part 541-8382 is specified for the current-generation R1700 (Cat C13 engine). The predecessor R1700G used a Cat C11 engine and an earlier front linkage geometry. The two generations are not necessarily interchangeable on hoist cylinders due to the front linkage redesign on the current R1700. If you have an R1700G, please provide your full serial number to our engineering team for confirmation of the correct cylinder part number before ordering.
